Page 32 - Assessing right ventricular function and the pulmonary circulation in pulmonary hypertension Onno Anthonius Spruijt
P. 32
2
Prediction models Model 1
Model 2
Model 3
-2LL B OR
PA/AAAX 56.56 1.19 3.27
PA/AAAX 26.48 1.79 5.99 RV/LVAX 0.82 2.28 PA/AAAX 21.03 2.40 10.98 RV/LV4CH 1.12 3.07
95% C.I.
1.78 – 6.03
1.67 – 21.45 1.37 – 3.78 1,73 – 69.52 1.46 – 6.46
p-value
P<0.001
P=0.006 P=0.001 P=0.011 P=0.003

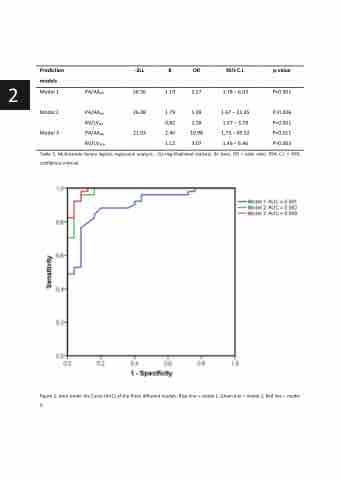

Table 5: Multivariate binary logistic regression analysis. -2LL=log-likelihood statistic; B= beta; OR = odds ratio; 95% C.I. = 95%
confidence interval.
Figure 2: Area Under the Curve (AUC) of the three different models. Blue line = model 1; Green line = model 2; Red line = model 3.
