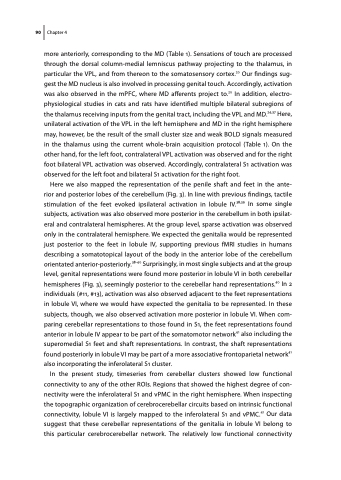

Page 92 - Bladder Dysfunction in the Context of the Bladder-Brain Connection - Ilse Groenendijk.pdf

90
Chapter 4
more anteriorly, corresponding to the MD (Table 1). Sensations of touch are processed through the dorsal column-medial lemniscus pathway projecting to the thalamus, in particular the VPL, and from thereon to the somatosensory cortex.20 Our findings sug- gest the MD nucleus is also involved in processing genital touch. Accordingly, activation was also observed in the mPFC, where MD afferents project to.20 In addition, electro- physiological studies in cats and rats have identified multiple bilateral subregions of the thalamus receiving inputs from the genital tract, including the VPL and MD.24,37 Here, unilateral activation of the VPL in the left hemisphere and MD in the right hemisphere may, however, be the result of the small cluster size and weak BOLD signals measured in the thalamus using the current whole-brain acquisition protocol (Table 1). On the other hand, for the left foot, contralateral VPL activation was observed and for the right foot bilateral VPL activation was observed. Accordingly, contralateral S1 activation was observed for the left foot and bilateral S1 activation for the right foot.
Here we also mapped the representation of the penile shaft and feet in the ante- rior and posterior lobes of the cerebellum (Fig. 3). In line with previous findings, tactile stimulation of the feet evoked ipsilateral activation in lobule IV.38,39 In some single subjects, activation was also observed more posterior in the cerebellum in both ipsilat- eral and contralateral hemispheres. At the group level, sparse activation was observed only in the contralateral hemisphere. We expected the genitalia would be represented just posterior to the feet in lobule IV, supporting previous fMRI studies in humans describing a somatotopical layout of the body in the anterior lobe of the cerebellum orientated anterior-posteriorly.38-40 Surprisingly, in most single subjects and at the group level, genital representations were found more posterior in lobule VI in both cerebellar hemispheres (Fig. 3), seemingly posterior to the cerebellar hand representations.40 In 2 individuals (#11, #13), activation was also observed adjacent to the feet representations in lobule VI, where we would have expected the genitalia to be represented. In these subjects, though, we also observed activation more posterior in lobule VI. When com- paring cerebellar representations to those found in S1, the feet representations found anterior in lobule IV appear to be part of the somatomotor network41 also including the superomedial S1 feet and shaft representations. In contrast, the shaft representations found posteriorly in lobule VI may be part of a more associative frontoparietal network41 also incorporating the inferolateral S1 cluster.
In the present study, timeseries from cerebellar clusters showed low functional connectivity to any of the other ROIs. Regions that showed the highest degree of con- nectivity were the inferolateral S1 and vPMC in the right hemisphere. When inspecting the topographic organization of cerebrocerebellar circuits based on intrinsic functional connectivity, lobule VI is largely mapped to the inferolateral S1 and vPMC.41 Our data suggest that these cerebellar representations of the genitalia in lobule VI belong to this particular cerebrocerebellar network. The relatively low functional connectivity
