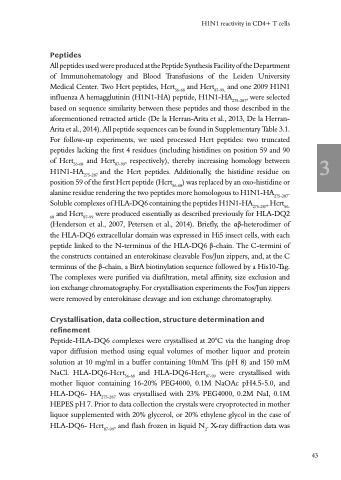

Page 45 - The autoimmune hypothesis of narcolepsy and its unexplored clinical features M.S. Schinkelshoek
P. 45

Peptides
All peptides used were produced at the Peptide Synthesis Facility of the Department of Immunohematology and Blood Transfusions of the Leiden University Medical Center. Two Hcrt peptides, Hcrt56-68 and Hcrt87-99, and one 2009 H1N1 influenza A hemagglutinin (H1N1-HA) peptide, H1N1-HA275-287, were selected based on sequence similarity between these peptides and those described in the aforementioned retracted article (De la Herran-Arita et al., 2013, De la Herran- Aritaetal.,2014).AllpeptidesequencescanbefoundinSupplementaryTable3.1. For follow-up experiments, we used processed Hcrt peptides: two truncated peptides lacking the first 4 residues (including histidines on position 59 and 90 of Hcrt56-68 and Hcrt87-99, respectively), thereby increasing homology between H1N1-HA275-287 and the Hcrt peptides. Additionally, the histidine residue on position 59 of the first Hcrt peptide (Hcrt56-68) was replaced by an oxo-histidine or alanine residue rendering the two peptides more homologous to H1N1-HA275-287. Soluble complexes of HLA-DQ6 containing the peptides H1N1-HA275-287, Hcrt56- 68 and Hcrt87-99 were produced essentially as described previously for HLA-DQ2 (Henderson et al., 2007, Petersen et al., 2014). Briefly, the αβ-heterodimer of the HLA-DQ6 extracellular domain was expressed in Hi5 insect cells, with each peptide linked to the N-terminus of the HLA-DQ6 β-chain. The C-termini of the constructs contained an enterokinase cleavable Fos/Jun zippers, and, at the C terminus of the β-chain, a BirA biotinylation sequence followed by a His10-Tag. The complexes were purified via diafiltration, metal affinity, size exclusion and ion exchange chromatography. For crystallisation experiments the Fos/Jun zippers were removed by enterokinase cleavage and ion exchange chromatography.
Crystallisation, data collection, structure determination and refinement
Peptide-HLA-DQ6 complexes were crystallised at 20°C via the hanging drop vapor diffusion method using equal volumes of mother liquor and protein solution at 10 mg/ml in a buffer containing 10mM Tris (pH 8) and 150 mM NaCl. HLA-DQ6-Hcrt56-68 and HLA-DQ6-Hcrt87-99 were crystallised with mother liquor containing 16-20% PEG4000, 0.1M NaOAc pH4.5-5.0, and HLA-DQ6- HA275-287 was crystallised with 23% PEG4000, 0.2M NaI, 0.1M HEPES pH 7. Prior to data collection the crystals were cryoprotected in mother liquor supplemented with 20% glycerol, or 20% ethylene glycol in the case of HLA-DQ6- Hcrt87-99, and flash frozen in liquid N2. X-ray diffraction data was
H1N1 reactivity in CD4+ T cells
43
 3




























































































   43   44   45   46   47
